pharmaceutical NJP Series Low Noise Automatic Hard liquid Capsule Filling making Machine size 000 to 5
Our NJP is used for Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin,
foodstuff and animal drug, etc.
1. Touching-Screen, PLC program control panel with LCD.
2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
4. Easy speed selection and closed capsule length adjustment.
5. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
6. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
7. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
Technical Parameters
| Machine Model | NJP-200 | NJP-400 |
| Max. Output | 12000 Capsules/H | 24000 Capsules/H |
| Capsule Size | Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E (need to exchange the spare parts/moulds accordingly) |
| Dosage Type | Powder/Pellet/Tablet |
| Power Supply | 380V 50HZ 3.7KW (Can be made according to the client`svoltage standard) |
| Noise Index | Less than 75dBA |
| Machine Size/N.W. | 920mm x 800mm x 1900mm Net Weight: 950KG |
| Packing Size/G.W. | 1600mm x 1000mm x 2150mm Gross Weight:1200KG |

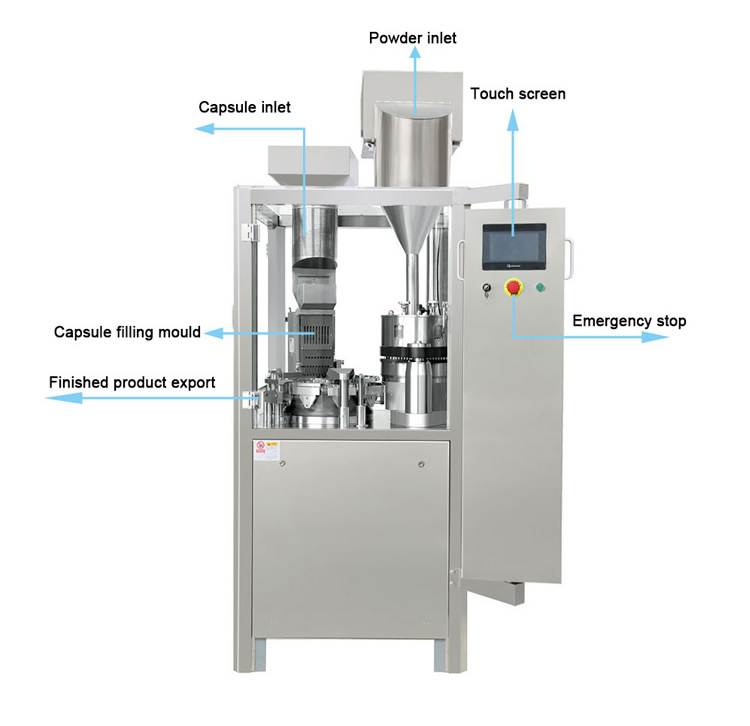

Machine Details
Applications
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill),also can be used to fill vitamin, foodstuff and animal drug, etc.
Product Tags:
|
|

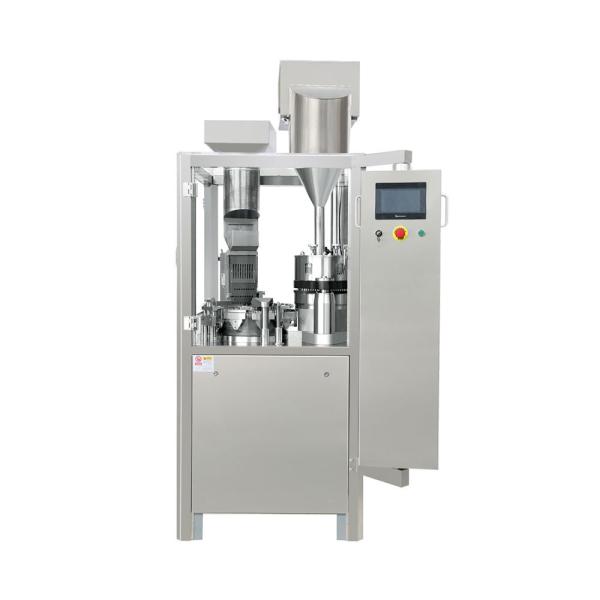

PLC Pharmaceutical 3 Bores Capsule Filler Machine Images
|
